Transfer Switches and Connector Systems
Tap Boxes
Built to connect with open channel busway systems, Forgent tap boxes provide a secure, high-capacity plug-in unit engineered for dense and evolving loads.
Transfer Switches and Connector Systems | Forgent
Tap Boxes
Built to connect with open channel busway systems, Forgent tap boxes provide a secure, high-capacity plug-in unit engineered for dense and evolving loads.
.png)
MGM Liquid-Filled Substation 7.5MVA
Transformer Product Two
Transformer Product Three
Transformer Product Three
Transformer Product Three
Transformer Product Three
MGM Liquid-Filled Substation 7.5MVA
Engineered for reliability in mission-critical environments, our 7.5MVA liquid-filled units combine rugged design, advanced cooling, and flexible configurations.
Handles up to 10 MVA with mineral oil or FR3 cooling, ensuring efficient heat dissipation and long service life.
Built for heavy-duty distribution with ANSI-compliant design, dual temperature rise options, and robust insulation.
Offers optional load interrupter switches and custom electrical configurations for seamless integration on-site.
CATEGORY
specifications
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.
This is some text inside of a div block.

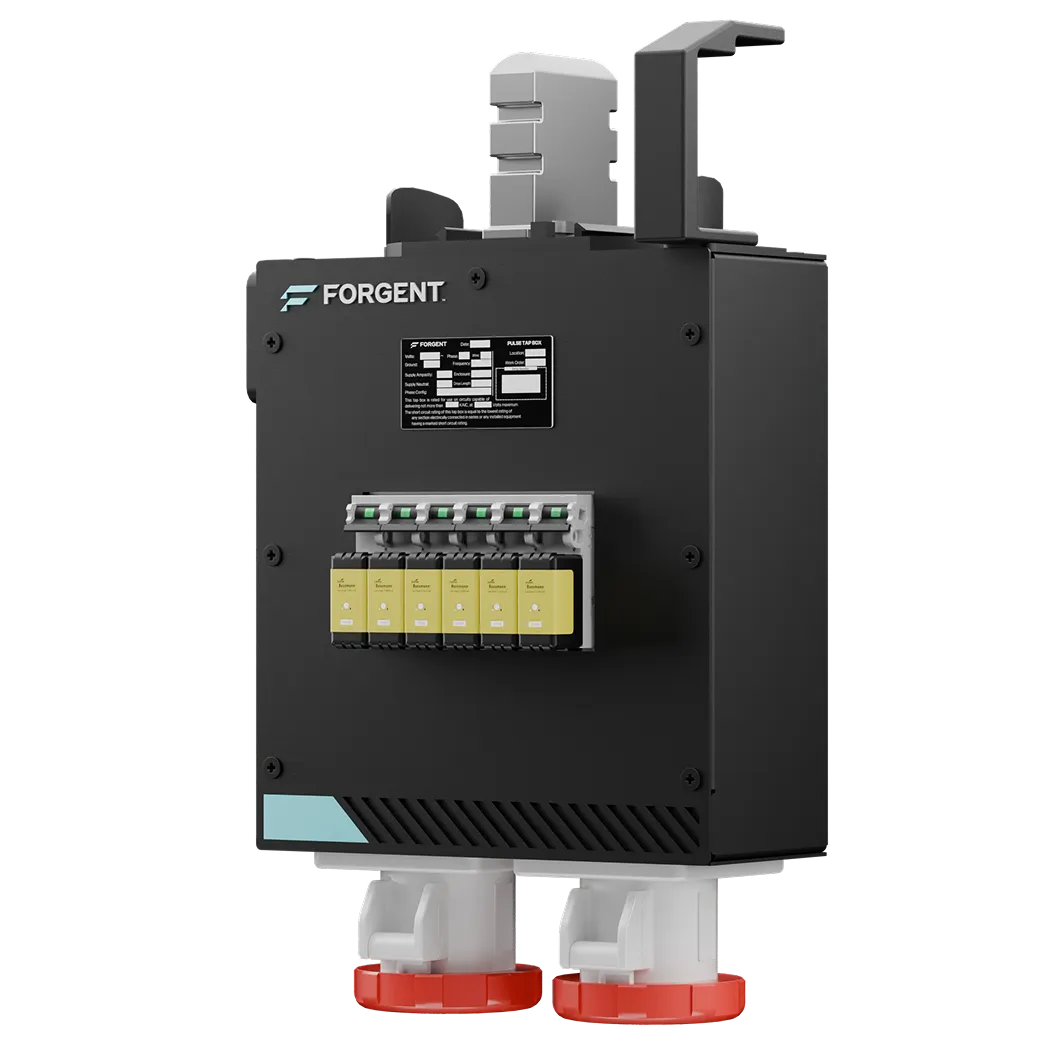

Tap Boxes

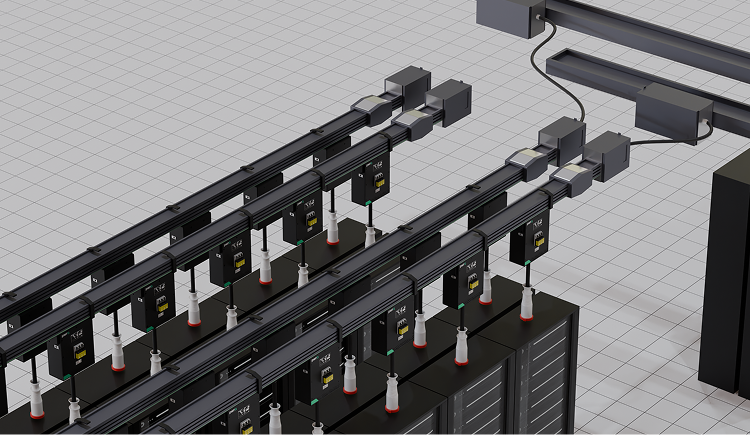

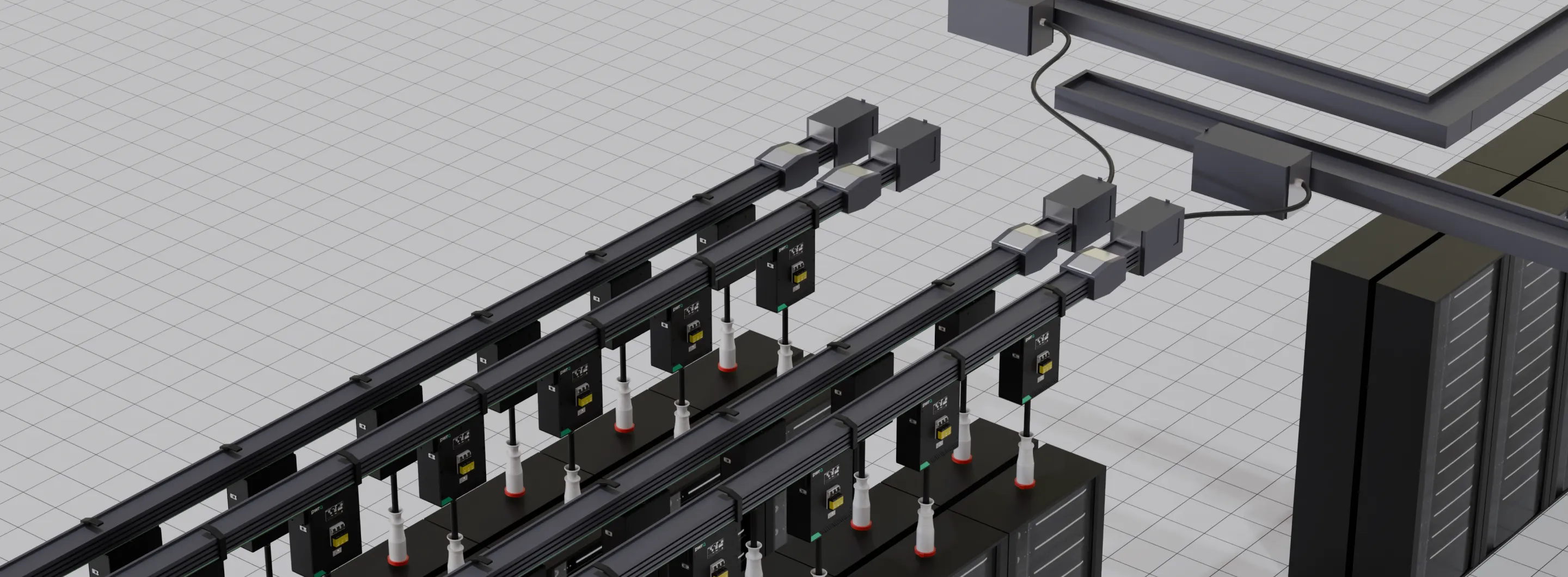

With seamless and safe installation, Forgent’s tap boxes enable advanced monitoring and power distribution throughout your data hall.
Rated 15A–125A and up to 50 kAIC short-circuit protection for dependable, high-capacity performance.
Supports 3PH 3W and 4W 120–480 Vac configurations to integrate easily across global data hall standards.
Built to UL standards and certified through ETL to promote safe installation, remote visibility, and long-term reliability.
CATEGORY
specifications
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
power rating
7.5 MVA
Input Phasing Available|3P3W — 3P4W
Input Voltages Available|208/120 VAC — 415/240 VAC — 480/277 VAC
Amperage|15A - 125A
Frequency|60Hz
Standard Connections|L1, L2, L3, N, G
Connectors|Single Drop — Double Drop — Single Receptacle — Double Receptacle
Bussing|Copper (Silver Plated)
Max Available Fault Current|Up to 50 kAIC
Ground Bussing|100% Isolated Ground — 50% Chassis Ground
Neutral Rating|100% — 200%
Data Protocols|Modbus TCP / IP (Ethernet) ; Modbus RTU (RS-485 2 wire) ; HTML (Web Server)
Modbus Serial Specifications|9600, 19200, 38400 Baud (Selectable)
USB Port|USB 2.0 Type A
Web Server|HTML via Standard Web Browser
Wifi Option|802.11g/n ; Requires Wifi Option
Cellular Option|CAT1 / CAT M1 ; Requires Subscription
Accuracy|0.50 %
Sampling Rate|3 kHz
Ethernet Ports|2 x RJ-45 10/100 Mbit
Tap Boxes
Built Better, Inside and Out

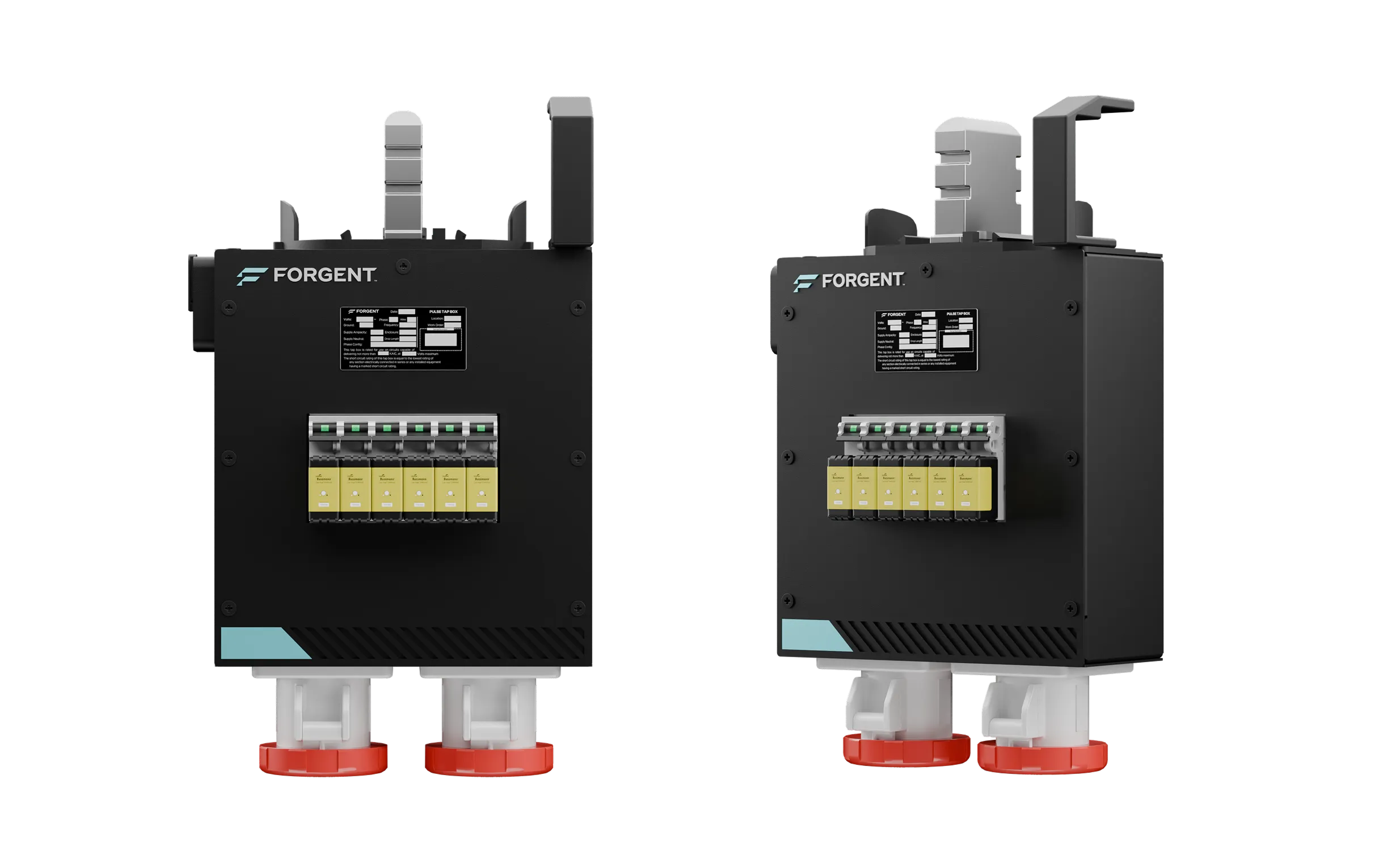

Explore the features that make Forgent tap boxes engineered to support uptime in every data hall.
Corded Pin & Sleeve Receptacles
Supports multiple drop-cord and receptacle options for flexible load connections.
Corded Pin & Sleeve Receptacles
Supports multiple drop-cord and receptacle options for flexible load connections.
Corded Pin & Sleeve Receptacles
Supports multiple drop-cord and receptacle options for flexible load connections.
Corded Pin & Sleeve Receptacles
Supports multiple drop-cord and receptacle options for flexible load connections.
Corded Pin & Sleeve Receptacles
Supports multiple drop-cord and receptacle options for flexible load connections.
Overcurrent Protection Device
Houses breakers or fuses from most major brands.
Overcurrent Protection Device
Houses breakers or fuses from most major brands.
Overcurrent Protection Device
Houses breakers or fuses from most major brands.
Overcurrent Protection Device
Houses breakers or fuses from most major brands.
Overcurrent Protection Device
Houses breakers or fuses from most major brands.
Rotary Busway Stab Mechanism
Securely rotates into position for controlled, safe electrical contact with the busway.
Rotary Busway Stab Mechanism
Securely rotates into position for controlled, safe electrical contact with the busway.
Rotary Busway Stab Mechanism
Securely rotates into position for controlled, safe electrical contact with the busway.
Rotary Busway Stab Mechanism
Securely rotates into position for controlled, safe electrical contact with the busway.
Rotary Busway Stab Mechanism
Securely rotates into position for controlled, safe electrical contact with the busway.
Busway Bracing Hangar
Provides stable mounting support for safe busway engagement.
Busway Bracing Hangar
Provides stable mounting support for safe busway engagement.
Busway Bracing Hangar
Provides stable mounting support for safe busway engagement.
Busway Bracing Hangar
Provides stable mounting support for safe busway engagement.
Busway Bracing Hangar
Provides stable mounting support for safe busway engagement.
Secure Latch Assembly
Ensures mechanical fastening and quick-release installation.
Secure Latch Assembly
Ensures mechanical fastening and quick-release installation.
Secure Latch Assembly
Ensures mechanical fastening and quick-release installation.
Secure Latch Assembly
Ensures mechanical fastening and quick-release installation.
Secure Latch Assembly
Ensures mechanical fastening and quick-release installation.
Engineered FOR YOUR NEEDS
We understand that no two projects are identical. Our application engineers partner with you to design tap boxes that deliver peak performance within your power system.
Amperage
Selectable ratings from 15A to 125A to match system load and distribution design.
Voltage
Configurable for 120/208V, 240/415V, or 277/480V 3-phase, 3- or 4-wire applications.
Protection
Available with up to 35 kAIC short-circuit rating for dependable fault mitigation.
.svg)
Phasing
Supports 3PH 4W or 3PH 5W configurations to align with site-specific busway layouts.
Monitoring
Optional metering and remote visibility for real-time circuit-level data insight.
Connectivity
Quick-connect interface options for seamless integration with data rack systems.
